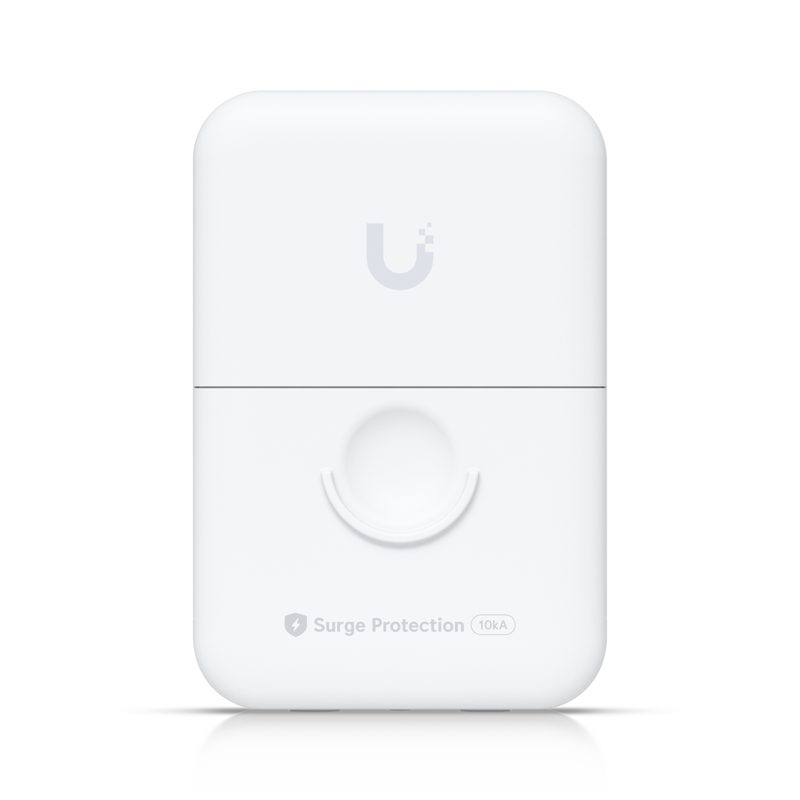

Ubiquiti Ethernet Surge Protector Outdoor

Beschreibung

ESD protection for outdoor high-speed networks.

Technische Daten

Connector

(2) Shielding RJ45

Standards

TIA/EIA-568-B.2 ISO/IEC 11801

Bend Radius

Min. 50.4 mm (1.98'')

Flame Rating

VW-1 (UL1581)

Pack Options

Single Unit

UV Resistance

ASTM G 151/154

Conductor Type

Stranded copper

Shielding Type

S/FTP

Jacket Diameter

6.3 mm (0.25")

Jacket Material

Thermoplastic elastomer (TPE)

Available Colors

White, Black

Available Lengths

1, 2, 3, 5, 8 m (3.3, 6.6, 9.8, 16.4, 26.3 ft)

Mechanical: Weight

95 g (3.35 oz)

Supported PoE Type

Up to PoE+++

Conductor Wire Gage

24 AWG

Supported Data Rate

GbE

Hardware: Insulation

Max. Resistance: 1G ohm @ 50V

Operating Environment

Outdoor

Mechanical: Dimensions

91 x 61 x 32.5 mm (3.6 x 2.4 x 1.3")

Hardware: ESD Protection

Absorbing transient current with response to surge voltage from 100V/s to 1kV/µs

Installation Temperature

-20 to 60°C (-4 to 140°F)

Hardware: Max. Capacitance

1.0 pF @ 1 MHz

Ambient Storage Temperature

-40 to 80°C (-40 to 176°F)

Hardware: Discharge Current

20kA

Mechanical: Weatherproofing

IPX5

Hardware: ESD/EMP Protection

Absorbing transient current with response to surge voltage from 100V/s to 1kV/µs

Ambient Operating Temperature

-30 to 75°C (-22 to 167°F)

Hardware: Data Line Protection

Up to 10 Gbps

Hardware: Networking Interface

(2) RJ45 female connectors

Mechanical: Enclosure Material

Polycarbonate

Hardware: DC Spark-Over Voltage

90V @ 100V/s

Hardware: Ambient Operating Humidity

10 to 90% noncondensing

Hardware: Ambient Operating Temperature

-30 to 65° C (-22 to 149° F)

Hardware: Max. Impulse Spark-Over Voltage

600V @ 1kV/µs

Hardware: Shock and Vibration Certification

ETSI300-019-1.4 Standard
