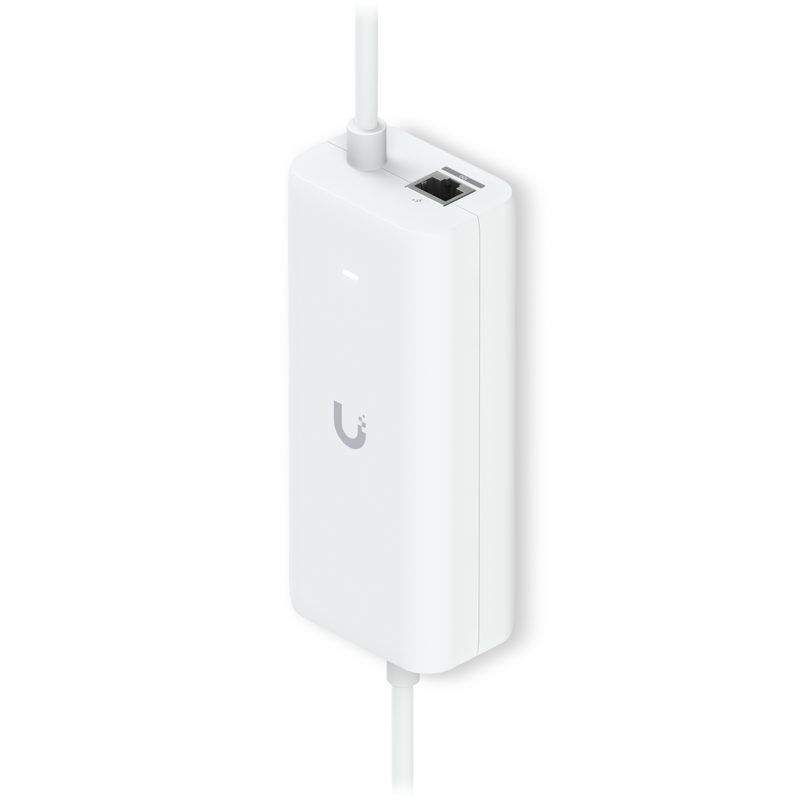

Ubiquiti PoE Integrated AC Adapter
Ubiquiti · UACC-PoE+-USBC
sofort lieferbar
60,64 €inkl. MwSt., zzgl. Versand
Beschreibung
AC adapter with integrated PoE+ that powers a UniFi Cloud Gateway via USB-C while delivering up to 30W PoE+ to a connected device—ideal for adding PoE output or supporting a UniFi 5G backup, with flexible wall, DIN rail, or floating mount options.
Technische Daten
- Length
- Cable: 150 cm (4.9 ft) total, including 30 cm split Type-C/Ethernet ends Power cord: 180 cm (5.9 ft)
- Weight
- 358 g (12.6 oz)
- Dimensions
- 146 x 62 x 42 mm (5.7 x 2.4 x 1.7")
- Efficiency
- 82%
- Data In / PoE
- RJ45 shielded socket
- Input Current
- 1.5A max.
- Output Ripple
- 1% max.
- Rated Voltage
- 100–240V AC at 50/60Hz
- Response Time
- <1 ns
- Certifications
- CE, FCC, IC, UL, UKCA, CCC, RoHS
- Inrush Current
- 120A
- Output Voltage
- Type-C: 5V@ 5A PoE+: 48V@ 0.65A
- 4-pair Powering
- Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-)
- Line Regulation
- ≤ 5%
- Load Regulation
- ≤ 5%
- Surge Protection
- Difference and common mode
- Shunt Capacitance
- <5 pF data
- Peak Pulse Current
- 36A (10/1000 μs) data
- Clamping Protection
- 11V data, 60V power
- Switching Frequency
- 65 kHz
- Max. Surge Discharge
- 1500A (8/20 μs) power
- Ambient Operating Humidity
- 10 to 95% noncondensing
- Ambient Storage Temperature
- -30 to 70°C (-22 to 158° F)
- Ambient Operating Temperature
- 0 to 40° C (32 to 104° F)
