Ubiquiti OS2 Duplex LC UPC Fiber Patch Cable 5m
Ubiquiti · UACC-OFC-S2-LULU-5M
sofort lieferbar
12,07 €inkl. MwSt., zzgl. Versand
Beschreibung

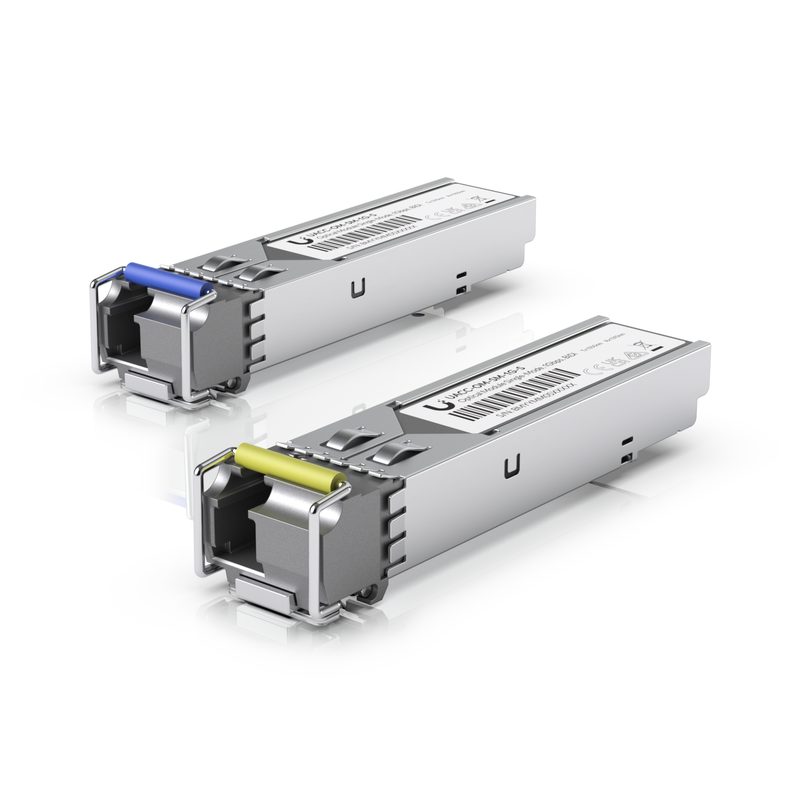

SFP transceiver that supports 1G connections up to 3 km using single-mode fiber with a simplex LC UPC connector.
Technische Daten
- WARNING
- CLASS 1 LASER PRODUCT, IEC/EN 60825-1:2014 Do not look into the ends of the fiber optic cable or SFP module while converters are powered.
- Connector
- Simplex LC UPC
- Durability
- ≤ 0.2 dB (1,000 times mating)
- Fiber Mode
- OS2
- Wavelength
- 1310/1550 nm
- Form Factor
- SFP
- Return Loss
- ≥ 50 dB
- Jacket Color
- Yellow
- Pack Options
- 2-Pack 20-Pack
- RX Wavelength
- 1550 / 1310 nm
- Repeatability
- ≤ 0.1 dB
- TX Wavelength
- 1310 / 1550 nm
- Insertion Loss
- ≤ 0.3 dB
- Jacket Diameter
- 2 mm (0.08")
- Jacket Material
- Low smoke zero halogen (LSZH)
- Supported Media
- Single-Mode Fiber
- Weatherproofing
- IP65
- Available Lengths
- 0.5, 1, 3, 5, 10, 15, 30 m (1.6, 3.3, 9.8, 16.4, 32.8, 49.2, 98.4 ft)
- Supported Data Rate
- 1 Gbps
- Operating Environment
- Indoor
- Max. Power Consumption
- 0.66 W
- Supported Cable Distance
- 3 km (1.9 mi)
- Ambient Operating Temperature
- 0 to 70° C (32 to 158° F)
