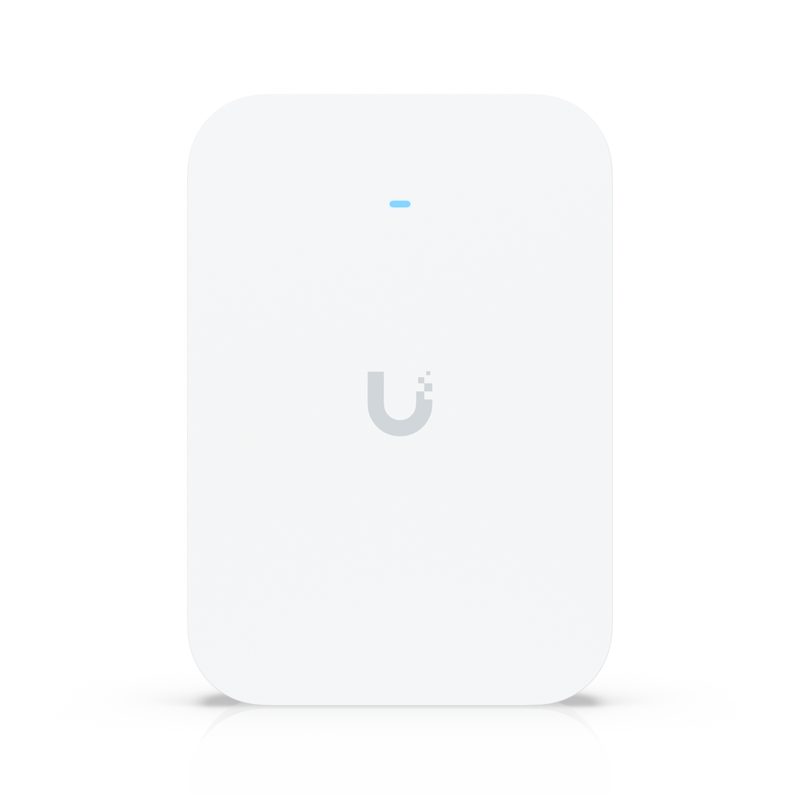

Ubiquiti UniFi AP U7-PRO XG Wall
Ubiquiti · U7-Pro-XG-Wall
sofort lieferbar
346,59 €inkl. MwSt., zzgl. Versand
Beschreibung
Wall-mounted 6 GHz-ready WiFi 7 AP with 1/2.5/5/10 GbE support.
Technische Daten
- Uplink
- 10 GbE
- Weight
- 200 g (7.1 oz)
- Mounting
- Wall
- Treatment
- Painting
- Dimensions
- 155 x 108 x 33.5 mm (6.1 x 4.3 x 1.3'')
- Power Method
- PoE+
- Coverage Area
- 140 m² (1,500 ft²)
- WiFi Standard
- WiFi 7
- Spatial Streams
- 6
- Hardware: System
- W/B
- Hardware: Weight
- 505 g (1.1 lb)
- Max. Client Count
- 300+
- Enclosure Material
- Polycarbonate, aluminum alloy, silicone rubber
- Performance: 5 GHz
- 2 x 2 (DL/UL MU-MIMO)
- Performance: 6 GHz
- 2 x 2 (DL/UL MU-MIMO)
- Grid overview: WiFi7
- WiFi 7
- Hardware: Management
- Ethernet
- Performance: 2.4 GHz
- 2 x 2 (DL/UL MU-MIMO)
- Performance: 802.11n
- 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
- Software: Mobile App
- iOS™ version 10.29.3 and later Android™ version 10.31.1 and later
- Software: UniFi Network
- Version 10.0 and later
- Hardware: Certifications
- CE, FCC, IC
- Hardware: Mount Material
- Aluminum alloy
- Performance: Max. BSSIDs
- 8 per Radio
- Hardware: Channel Bandwidth
- HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz)
- Grid overview: Radio/Antenna
- 6 GHz Radio
- Hardware: Enclosure Material
- Polycarbonate, aluminum alloy
- Hardware: Networking Interface
- (1) 10 GbE RJ45 port
- Performance: 802.11ac (WiFi 5)
- 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
- Performance: 802.11ax (WiFi 6)
- 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
- Performance: 802.11be (WiFi 7)
- 6 GHz: 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/320) 5 GHz: 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240)
- Hardware: Max. Power Consumption
- 22W
- Hardware: Supported Voltage Range
- 42.5–57V DC
- Hardware: Ambient Operating Humidity
- 5 to 95% noncondensing
- Hardware: Ambient Operating Temperature
- -30 to 40° C (-22 to 104° F)
