Beschreibung

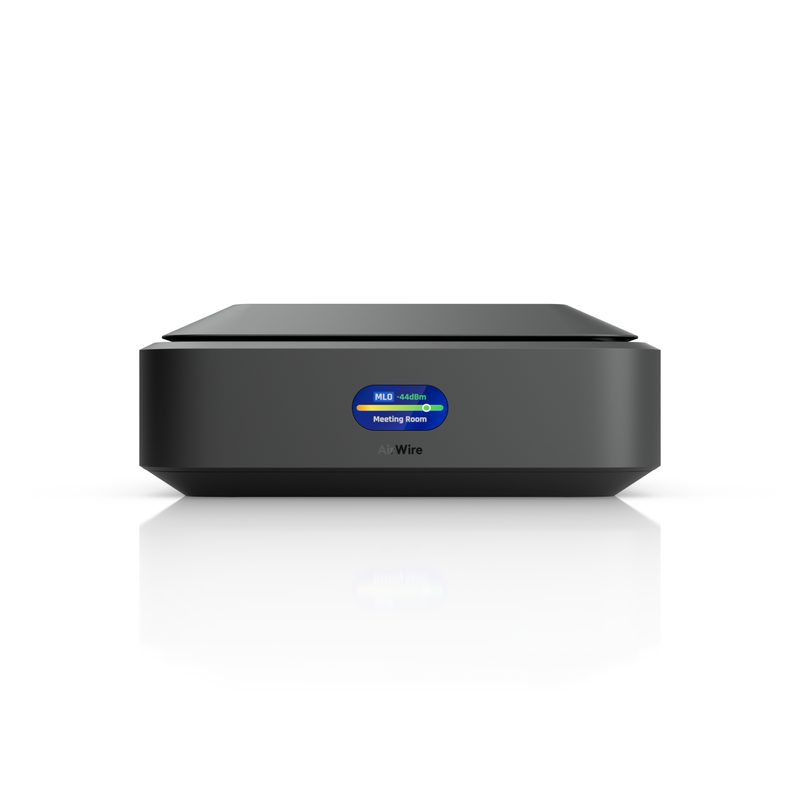

High-performance WiFi 7 client adapter with STR MLO, enabling simultaneous full-duplex links for ultra-low latency, extended range, and true multi-gigabit real-world speeds.
Technische Daten
- Uplink
- WiFi
- Dimensions
- 117 x 117 x 42.5 mm (4.6 x 4.6 x 1.7")
- WiFi Standard
- WiFi 7
- Spatial Streams
- 4
- Hardware: Weight
- 544 g (1.2 lb)
- Hardware: Display
- 0.96" status display
- Performance: 5 GHz
- 2 x 2 (DL/UL MU-MIMO)
- Performance: 6 GHz
- 2 x 2 (DL/UL MU-MIMO)
- Grid overview: WiFi7
- WiFi 7
- Hardware: Management
- USB-C
- Performance: 802.11n
- 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
- Hardware: Power Supply
- USB PD 5/9/12V, 15W (Standard mode) USB PD 5/9/12V, 20W (Enhanced mode)
- Software: UniFi Network
- Version 10.2 and later
- Hardware: Certifications
- CE, FCC, IC
- Hardware: Channel Bandwidth
- HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz)
- Hardware: Enclosure Material
- Polycarbonate
- Hardware: Networking Interface
- (1) 5 GbE port (USB3.2 Gen2)
- Performance: 802.11ac (WiFi 5)
- 6.5 Mbps to 1.7Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
- Performance: 802.11ax (WiFi 6)
- 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
- Performance: 802.11be (WiFi 7)
- 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/320)
- Hardware: Max. Power Consumption
- 18W
- Hardware: Ambient Operating Humidity
- 5 to 95% noncondensing
- Hardware: Ambient Operating Temperature
- -10 to 40° C (14 to 104° F)
