Beschreibung

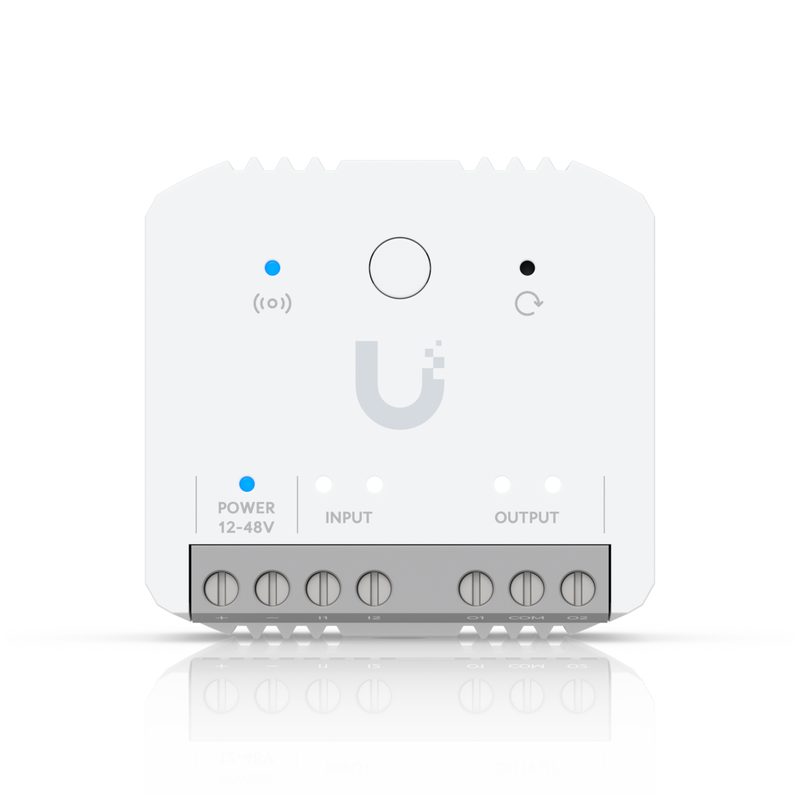

Compact SuperLink relay designed with I/O interfaces for seamless integration with third-party sensors and signaling devices.
Technische Daten
- Mounting
- Adhesive, wall and DIN rail mount
- Dimensions
- 50 x 47.6 x 28 mm (2 × 1.9 × 1.1")
- Hardware: LEDs
- (1) LoRa, Status: RGBW (2) Signal input, Relay output: W
- Hardware: Input
- I1/I2 Dry contact only Open/Short (GND) Integrated 5V TVS protection
- Hardware: Power
- VDD/GND 12–48V DC, max. 48V Integrated over-temperature protection (OTP) at 85°C (185°F)
- Performance: EU
- 865.1–869.5 MHz
- Performance: US
- 915.6–927.6 MHz
- Hardware: Output
- O1/COM/O2 Dry contact only (12-48V DC, 12-240V AC) 10A/port, UL total max: 12A IEC total max: 16A
- Hardware: Weight
- 100 g (3.5 oz)
- Hardware: Buttons
- (1) Factory reset (1) Test button
- Hardware: Display
- 1.14" status display
- Performance: Thread
- 2400–2480 MHz
- Software: Mobile App
- UniFi Protect iOS™ and Android™
- Hardware: Battery Life
- 2.2 h
- Hardware: Power Method
- 12V DC / 24V DC / 48V DC
- Performance: Bluetooth
- 2400–2480 MHz
- Performance: SuperLink
- 1 dBi
- UniFi Application Suite
- Protect
- Hardware: Certifications
- CE, FCC, IC
- Hardware: Mount Material
- Polycarbonate
- Performance: Connectivity
- SuperLink (Proprietary)
- Software: Web Application
- UniFi Protect
- Hardware: Antenna Connector
- (1) RP-SMA female
- Hardware: Enclosure Material
- Polycarbonate
- Hardware: Max. Power Consumption
- 3.4W
- Performance: Networking Interface
- (1) 10/100 MbE RJ45 port
- Hardware: Ambient Operating Humidity
- 10 to 90% noncondensing
- Hardware: Ambient Operating Temperature
- 0 to 40° C (32 to 104° F)
