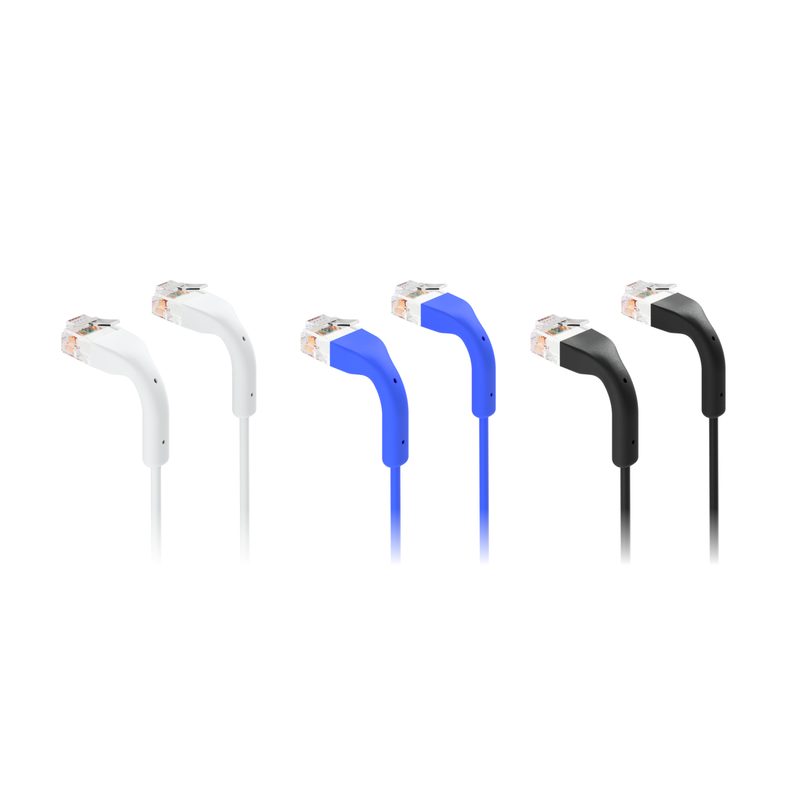

Ubiquiti UACC-Cable-Patch-EL-C6A-0.3M-W

Beschreibung

Ultra-thin patch cable with up to 10 GbE support and flexible, bendable boots for enhanced installation versatility.

Technische Daten

Höhe

9,0 cm

Tiefe

1,5 cm

Breite

5,5 cm

Gewicht

0,013 kg

Connector

(2) Bendable booted RJ45

Standards

TIA/EIA-568-B.2 ISO/IEC 11801

Bend Radius

0.2–8 m (0.7–26.2 ft): Min. 21 mm (0.83") 12–15 m (39.4–49.2 ft): Min. 24 mm (0.94")

Flame Rating

VW-1 (UL1581)

Pack Options

Single Unit (0.2, 0.4, 1, 2, 3, 5, 8, 12, 15 m) 10-Pack ( 0.2, 0.4, 1, 2, 3 m) 24-Pack (0.2, 0.4, 1, 2 m) 50-Pack (0.2, 0.4 m)

Bendable Boot

Max. ±90° / ±45° (vertical/horizontal)

UV Resistance

ASTM G 151/154

Conductor Type

Stranded copper

Shielding Type

UTP

Jacket Diameter

0.2–8 m (0.7–26.2 ft): 2.5 mm (0.1") 12–15 m (39.4–49.2 ft): 2.9 mm (0.11")

Jacket Material

Thermoplastic elastomer (TPE)

Available Colors

White, Blue, Black

Available Lengths

End-to-end: 0.2, 0.4, 1, 2, 3, 5, 8, 12, 15 m (0.7, 1.3, 3.3, 6.6, 9.8, 16.4, 26.2, 39.4, 49.2 ft)

Supported PoE Type

Up to PoE+++

Conductor Wire Gage

0.2–8 m (0.7–26.2 ft): 34 AWG 12–15 m (39.4–49.2 ft): 32 AWG

Supported Data Rate

10 GbE

Operating Environment

Indoor

Installation Temperature

-20 to 60°C (-4 to 140°F)

Ambient Storage Temperature

-20 to 75°C (-4 to 167°F)

Ambient Operating Temperature

-20 to 60°C (-4 to 140°F)
