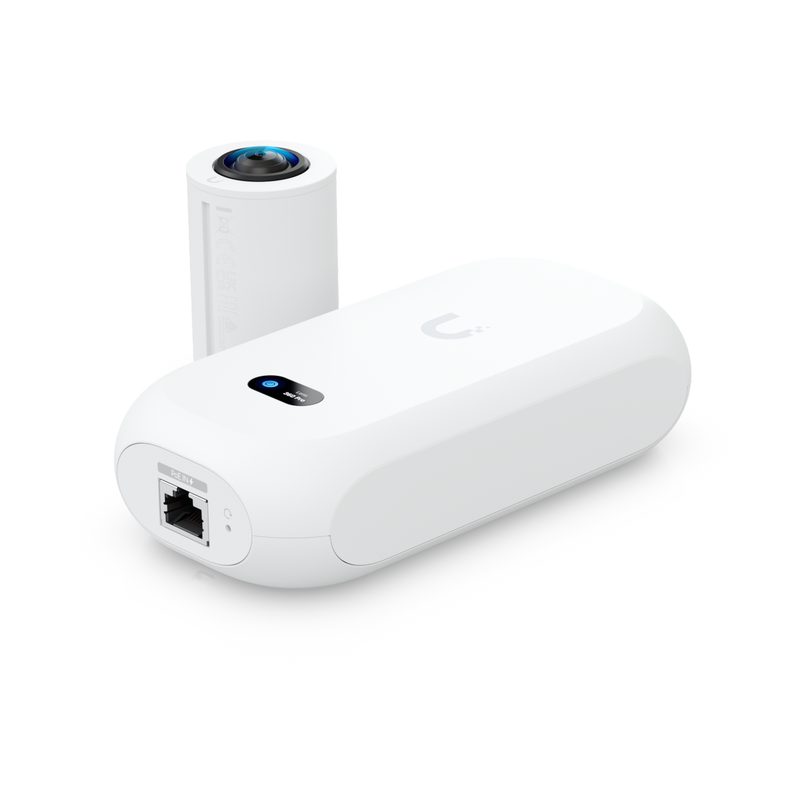

Ubiquiti UVC-AI-Theta
Ubiquiti · UVC-AI-THETA · EAN 0810010079701
sofort lieferbar
378,27 €inkl. MwSt., zzgl. Versand
Beschreibung
A complete ceiling 360° AI Theta system designed to discreetly provide a panoramic view of large, busy spaces.
Technische Daten
- Audio
- Two-way audio with optional AI Theta Audio
- Höhe
- 6,0 cm
- Tiefe
- 20,2 cm
- Breite
- 13,7 cm
- Length
- 1 m (3.3 ft)
- Weight
- 18 g (0.6 oz)
- Gewicht
- 0,724 kg
- Mounting
- Wall, ceiling, flush mount (Included) Angle mount (Optional)
- Connector
- Theta proprietary
- Dimensions
- UVC-AI-Theta-Hub: 140 x 70 x 38 mm (5.5 x 2.8 x 1.5”) UVC-AI-Theta-ProLens360: ⌀36.6 x 58.9 mm (⌀1.4 x 2.3”) UVC-AI-Theta-ProLens360 Flush mount: ⌀54.6 x 60.4 mm (⌀2.2 x 2.4”)
- Resolution
- 4k
- Jacket Color
- White
- Field of View
- H: 180°, V: 180°, D: 180°
- Jacket Diameter
- 3.3 mm (0.13")
- Jacket Material
- Woven fabric
- Hardware: Button
- (1) Factory reset
- Hardware: Weight
- UVC-AI-Theta-Hub: 330 g (11.6 oz) UVC-AI-Theta-Hub mount: 35 g (1.2 oz) UVC-AI-Theta-ProLens360: 58 g (2 oz) UVC-AI-Theta-ProLens360 Flush mount: 24 g (0.8 oz)
- Grid overview: AI
- Enhanced AI
- Performance: Lens
- Fixed focal length
- Grid overview: Kit
- Hub + Lens
- Hardware: Processor
- Quad-core Arm® Cortex®-A53 based chip
- Performance: Sensor
- 8MP 1/1.8" CMOS
- Hardware: LCM Display
- 0.96" display
- Operating Environment
- Indoor only
- Hardware: Cable Length
- 1 m (3.3 ft)
- Hardware: Power Method
- PoE
- Hardware: Power Output
- 5V DC, 1A per port
- Hardware: Power Supply
- 5V DC, 0.5A
- Performance: Resolution
- 4MP 2160 x 2160 (1:1)
- UniFi Application Suite
- Protect
- Grid overview: Footprint
- Compact
- Hardware: Cable Diameter
- 3.3 mm (0.13")
- Hardware: Certifications
- CE, FCC, IC
- Hardware: Mount Material
- UVC-AI-Theta-Hub: aluminum alloy UVC-AI-Theta-ProLens360 Flush mount: polycarbonate
- Grid overview: View Angle
- 180° Horizontal
- Hardware: Jacket Material
- Woven fabric
- Jacket Enclosure Material
- PVC
- Hardware: Mounting Material
- Aluminum alloy
- Performance: Image Settings
- Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay
- Software: UniFi Protect Web
- Version 2.7.18 and later
- Hardware: Enclosure Material
- UVC-AI-Theta-Hub: aluminum alloy UVC-AI-Theta-ProLens360: aluminum alloy, polycarbonate
- Performance: Max. Frame Rate
- 24 FPS
- Grid overview: Lens Resolution
- 4K
- Hardware: Cable Connector Type
- Theta proprietary
- Hardware: Max. Power Consumption
- 12.5W
- Hardware: Supported Voltage Range
- 37—57V DC
- Performance: Networking Interface
- GbE RJ45 port
- Hardware: Jacket Enclosure Material
- PVC
- Hardware: Ambient Operating Humidity
- 10 to 90% noncondensing
- Hardware: Jacket Enclosure Dimensions
- 28 x 13 x 7.5 mm (1.1 x 0.5 x 0.3")
- Hardware: Ambient Operating Temperature
- -20 to 40° C (-4 to 104° F)
- Software: UniFi Protect iOS™ and Android™
- Version 1.11.0 and later
